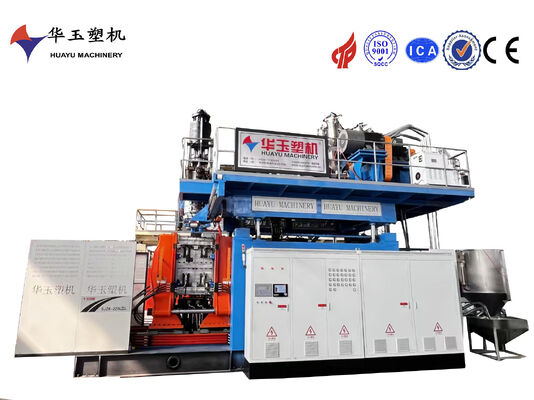

5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | Huayu |
| 証明 | CE,ISO9001 |
| モデル番号 | HYBM-5008 |
| 最小注文数量 | 1セット |
| 価格 | Negotiate |
| パッケージの詳細 | コンテナごと |
| 受渡し時間 | 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆 |
| 支払条件 | LC、T/T |
| 供給の能力 | 毎月4セット |
商品の詳細
| ホッパー素材 | ステンレス鋼 | ねじ材料 | 38 CrMoAIA,ナイトライディング |
|---|---|---|---|
| マテリアル | HDPE | 耐久性 | 素晴らしい |
| 冷却システム | 水冷 | 金型材料 | アルミニウム |
| 色 | カスタマイズされた | 電圧 | 依存します |
| Thermorelay | シーメンス | ||
| ハイライト | 5000L IBC blow molding machine,8-layer co-extrusion IBC machine,water cooling blow molding machine |
||
製品の説明

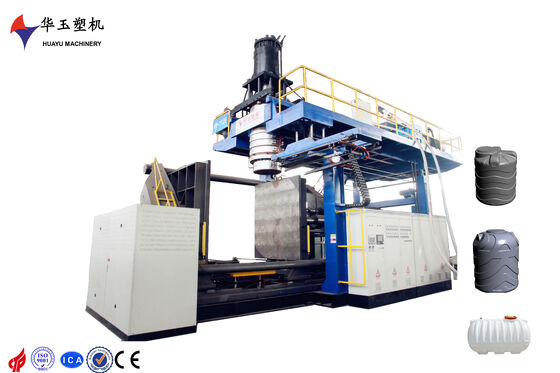

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
This energy-saving blow molding machine features a 5000L capacity and 8-layer co-extrusion technology designed to optimize energy usage. The integrated water tank system ensures rapid and effective cooling, significantly reducing energy consumption and operational costs. With an advanced control system providing precise process control, the machine delivers high-quality products consistently. Built for durability and reliable performance, it is ideal for large-scale production environments. The water tank is engineered for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for industrial production needs.
Clamping System Specifications
| Parameter | Specification | Features |
|---|---|---|
| Platen Size | 2400*2500*70mm (W*H*T) | Smooth running, no noise; high clamping force |
| Clamping Cylinder | 350+200*2 | - |
| Clamping Cylinder Stroke | 2200mm | - |
| Clamping Force | 3000KN | - |
| Distance Between Platens | 1600-4000mm | - |
| Maximum Mold Size | 1800*2500mm (W*H) | - |
Blowing and Cooling System Specifications
| Parameter | Specification |
|---|---|
| Stretching Stroke | According to products |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 3m³/min |
| Cooling Method | Circulating water |
| Water Pressure | 0.3MPa |
| Cooling Water Consumption | 75m³/h |
