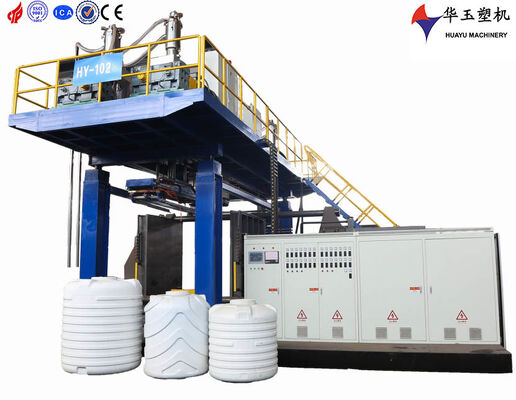

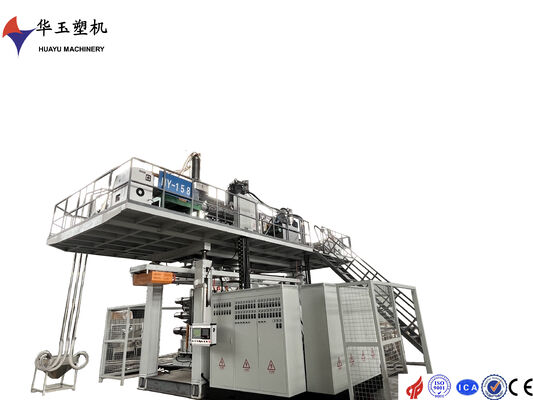

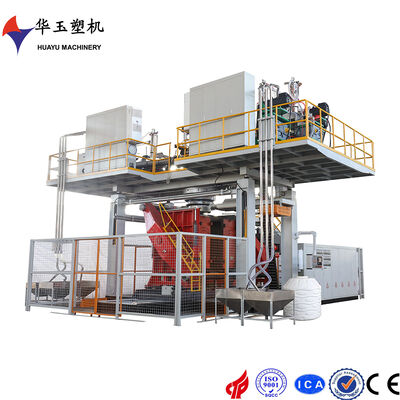

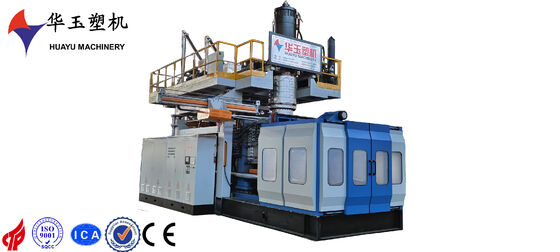

3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | Huayu |
| 証明 | CE,ISO9001 |
| モデル番号 | HYBM-3008 |
| 最小注文数量 | 1セット |
| 価格 | Negotiate |
| パッケージの詳細 | コンテナ別 |
| 受渡し時間 | 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆 |
| 支払条件 | LC、T/T |
| 供給の能力 | 毎月4セット |
商品の詳細
| ホッパー素材 | ステンレス鋼 | 層 | 8つの層 |
|---|---|---|---|
| 自動 | はい | 金型材料 | アルミニウム |
| 容量 | 3000L | 加熱方法 | 電気加熱 |
| 冷却水の消費 | 0.3Mpa*20°C*30°C/時間 | バケツの厚さ | 厚くない |
| 保証 | 1年 | 冷却モード | 空冷 |
| ハイライト | 3000L IBC blow molding machine,8-layer co-extrusion IBC tank machine,rapid cooling IBC molding machine |
||
製品の説明
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine
This high-capacity blow molding machine features 8-layer co-extrusion technology and a 3000L capacity, engineered for rapid production cycles. The integrated water tank cooling system ensures efficient heat dissipation, significantly reducing cycle times while maintaining consistent product quality. Advanced control systems provide precise molding process management, while the robust construction delivers long-term reliability with minimal maintenance requirements.
Blowing and Cooling System Specifications
| Stretching Stroke | Customizable according to product requirements |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8 MPa |
| Air Consumption | 3 m³/min |
| Cooling Method | Circulating Water System |
| Water Pressure | 0.3 MPa |
| Cooling Water Consumption | 75 m³/h |
Hydraulic System Specifications
| Main Oil Tank Capacity | 1700L |
| Main Oil Pump | Gear Pump 200CC |
| Main Oil Pump Motor | 75 kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 11 kW |
| Features: Servo motor technology for reduced energy consumption, high efficiency operation, and low noise levels | |
