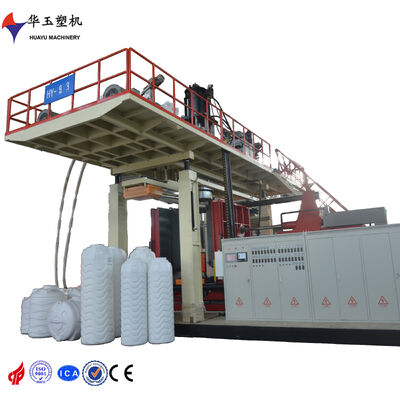

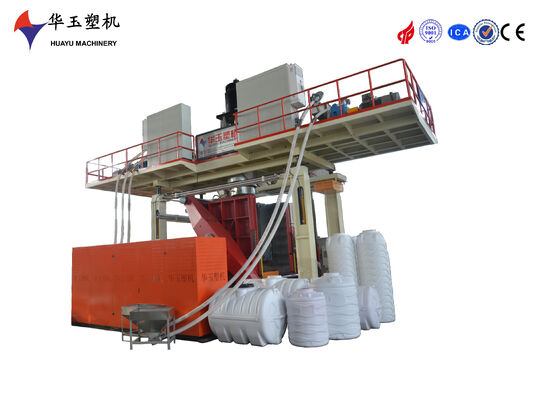

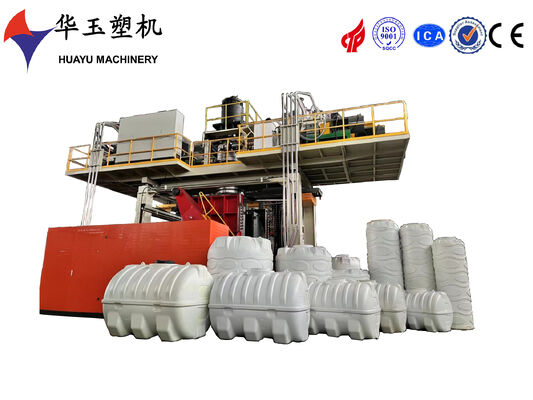

3000L Tri-Layer Drum Blow Molding Machine with Precision Wall Thickness and High-Capacity Output
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM-500-3000L、3層 |
| 最小注文数量 | 1セット |
| 価格 | 340000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4ヶ月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 電圧 | 未決 | 総電力 | 430KW |
|---|---|---|---|
| 平均力 | 290KW | 機械の寸法 (L*W*H) | 9.5*6.5*82 |
| 生産性 | 8から20個/h | ネジ径 | 130/130/mm |
| ねじL/D比 | 28：1 | 蓄積装置容量 | 90kg |
| マックス 模具のサイズ | 1800*2200mm(幅*高さ) | 最大空気圧 | 0.8MPa |
| 空気消費量 | 3m3/Min | ||
| ハイライト | Tri-Layer Construction Drum Blow Molding Machine,Precision Wall Thickness 3000L Drum Blow Molding Machine,High-Capacity 3000L Drum Blow Molding Machine |
||
製品の説明
3000L Tri-Layer Drum Blow Molding: Where Precision Meets Capacity
Why Choose Our 3000L Tri-Layer Drum Blow Molding Machine?
Advanced Tri-Layer Construction
Engineered for superior durability and structural integrity, ensuring each drum meets the highest standards of quality and performance.
Precision & Efficiency
Delivers consistent wall thickness and precise dimensions, minimizing material waste while maximizing production output.
Uncompromising Durability
Designed to withstand rigorous industrial use, providing long-lasting reliability and reducing maintenance costs over time.
User-Centric Design
Features intuitive controls and a streamlined interface, making operation efficient and accessible for all skill levels.
Industry-Leading Technology
Incorporates cutting-edge extrusion and blow molding techniques to deliver exceptional results in every drum produced.
Eco-Friendly Operation
Optimizes energy usage and reduces environmental impact, aligning with sustainable manufacturing practices.
Versatile Applications
Ideal for producing a wide range of 3000L drums, including those for chemicals, liquids, and bulk storage solutions.
Global Support Network
Backed by a dedicated team of experts providing comprehensive service, training, and technical assistance worldwide.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L |
| Main Oil Pump | Gear Pump 185CC |
| Main Oil Pump Motor | 57kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
