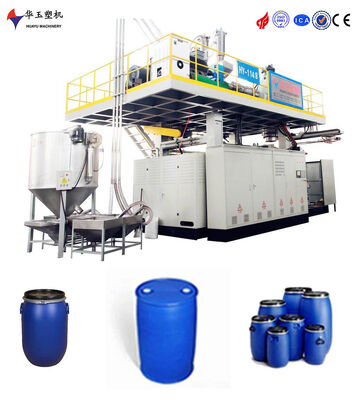

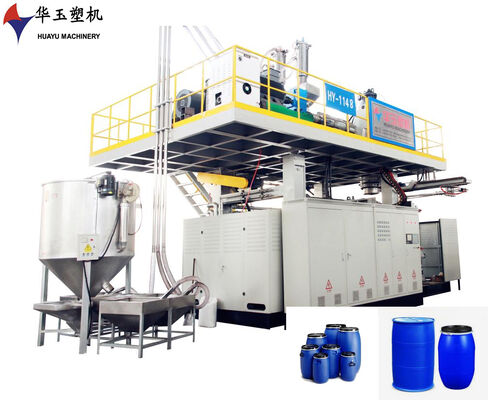

220L Double-Ring Barrel Blow Molding Machine with Dual-Layer Structure and High Efficiency Production for IBC Tanks
| Place of Origin | CHINA |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| Model Number | HYBM-220L,2layers |
| Minimum Order Quantity | 1 set |
| 価格 | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| Voltage | Pending | total power | 335kw |
|---|---|---|---|
| average power | 200kw | Machine dimension (L*W*H) | 7*6*6 |
| productivity | 20-30pcs/h | Screw diameter | 110/110mm |
| Screw L/D ratio | 30：1 | Accumulator capacity | 18kg |
| max. mould size | 1200*1500mm(W*H) | maximum air pressure | 0.8Mpa |
| air consumption | 0.8×3（MPa × Cubic meter per minute） | ||
| ハイライト | Dual-Layer Structure Double-Ring Barrel Blow Molding Machine,220L Capacity IBC Tank Blow Molding Machine,High Efficiency Production 220L Blow Molding Machine |
||
製品の説明
220L Double-Ring Barrel Blow Molding Machine | 2-Layer Engineering
Key Advantages
- Dual-Layer Structure Excellence - Enhanced barrel durability and insulation for reliable storage of diverse liquids and solids
- Precision Molding for Double-Ring Drums - Uniform wall thickness and consistent double-ring shaping meeting industrial standards
- High Efficiency Production - Streamlined process reduces cycle times while maintaining premium quality
- Versatile Application Scope - Tailored for 220L double-ring barrels with adaptability to multiple raw materials
- Robust & Stable Operation - Industrial-grade components ensure long-term performance with minimal downtime
- User-Friendly Design - Intuitive controls suitable for both experienced operators and new personnel
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 125CC | |
| Main Oil Pump Motor | 37kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
