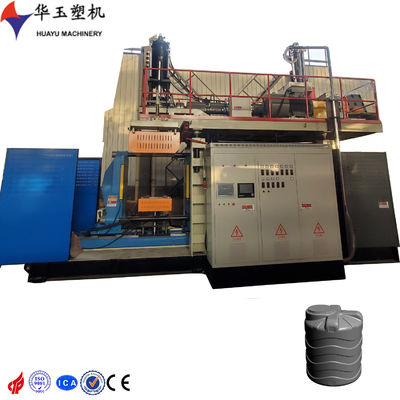

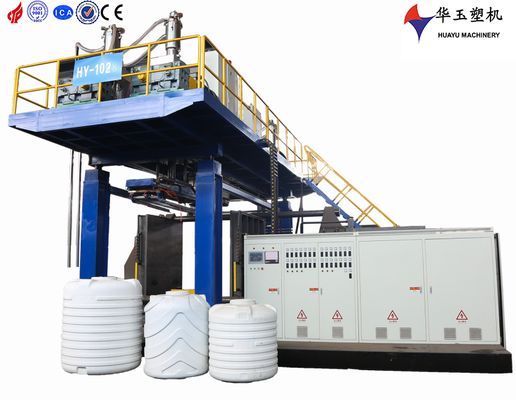

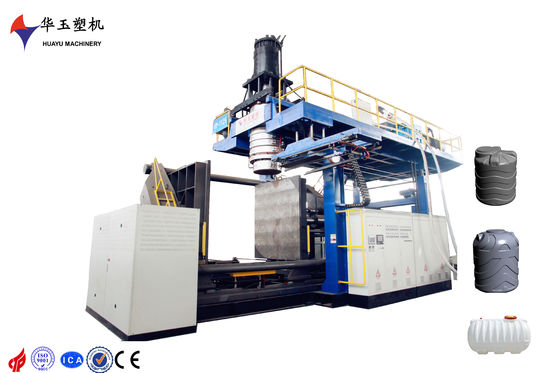

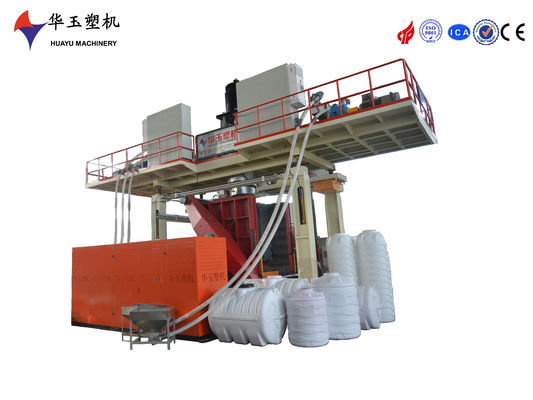

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM-500-2000L、12層 |
| 最小注文数量 | 1セット |
| 価格 | 360000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4ヶ月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 電圧 | 未決 | 総電力 | 648.5kw |
|---|---|---|---|
| 平均力 | 320kW | 生産性 | 10~24個/h |
| ネジ径 | 100mm*7 | ねじL/D比 | 28：1 |
| 蓄積装置容量 | 60kg | マックス 模具のサイズ | 1600*2000mm ((W*H) |
| 最大空気圧 | 0.8MPa | 空気消費量 | 2.3m3/min |
| ハイライト | 12-Layer Co-Extrusion Water Tank Blow Molder,2000L Large-Capacity Blow Molding Machine,Precision Engineering IBC Tank Blow Molding Machine |
||
製品の説明
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
- 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
- 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
- Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
- Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
- Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
- User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 163CC | |
| Main Oil Pump Motor | 48kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Main Operation Panel | Touch Screen 12" | |
| Control System | PLC | |
| Thickness Control Points | 200 Points | |
| Temperature Control | PLC Module |
