Automatic 5-Layer 1000L Extrusion Blow Molding Machine for Water Tanks
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM-200-1000L、5層 |
| 最小注文数量 | 1セット |
| 価格 | 260000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4ヶ月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 電圧 | 未決 | 総電力 | 402kw |
|---|---|---|---|
| 平均力 | 220kW | 機械の寸法 (L*W*H) | 8*9*6です5 |
| 生産性 | 16~25個/h | ネジ径 | 80/80/80/80/80mm |
| ねじL/D比 | 28：1 | 蓄積装置容量 | 35kg |
| デイメーター | プロダクトに従って | マックス 模具のサイズ | 1200*1500mm(幅*高さ) |
| 最大空気圧 | 0.8MPa | 空気消費量 | 1.5m3/min |
| ハイライト | 6-Layer Extrusion Blow Molding Machine,1000L Blow Moulding Machine,Automatic Water Tank Blow Moulding Machine |
||
製品の説明

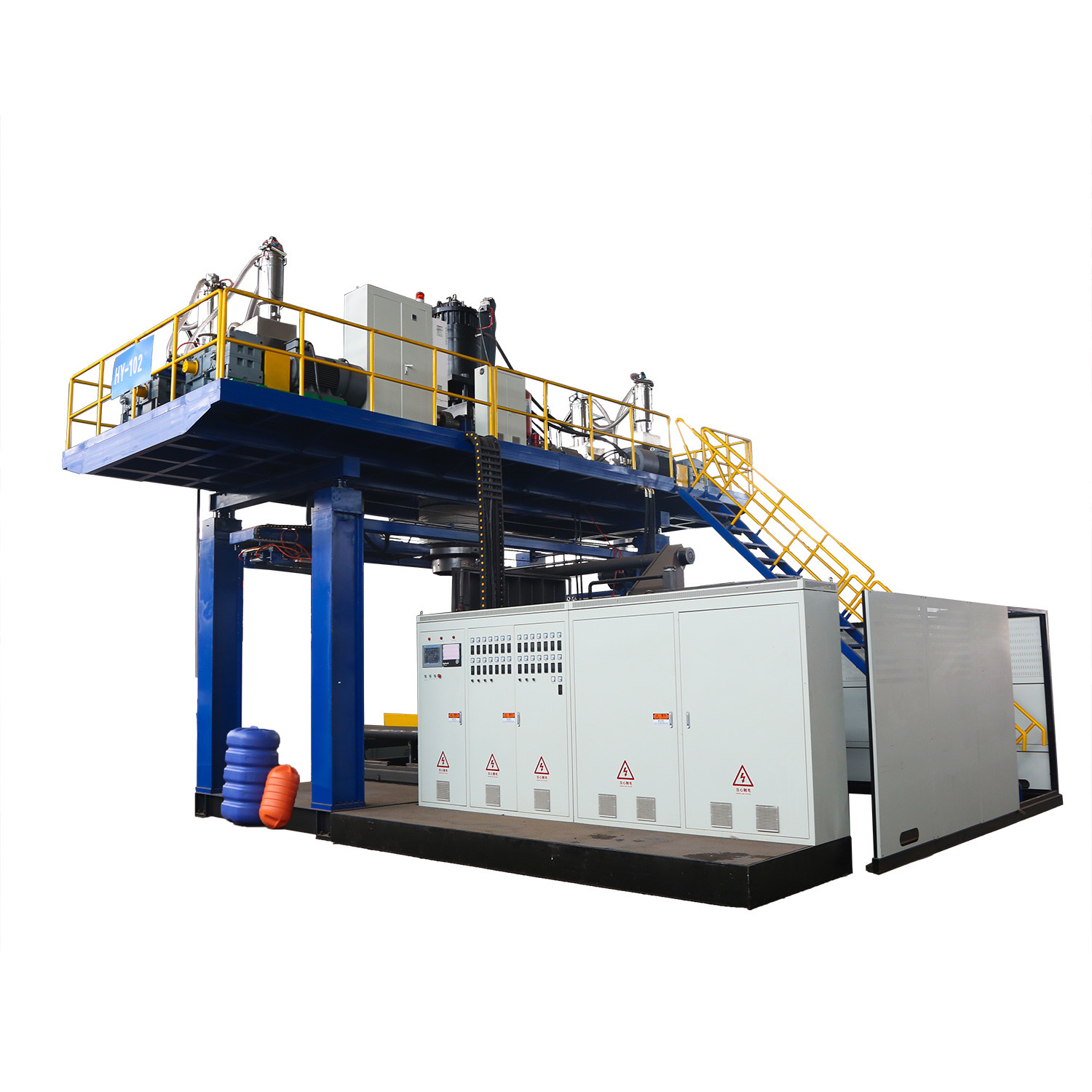

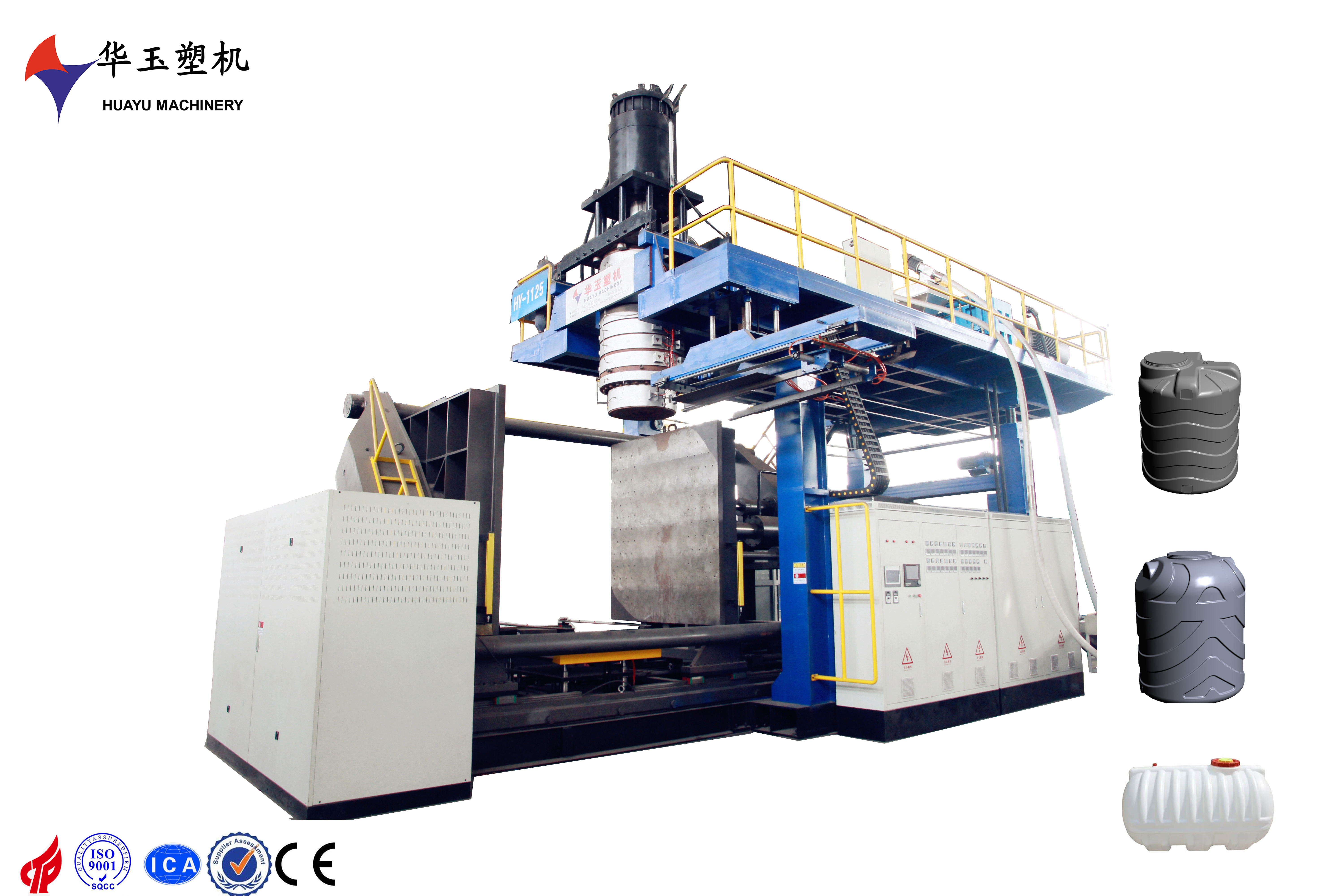

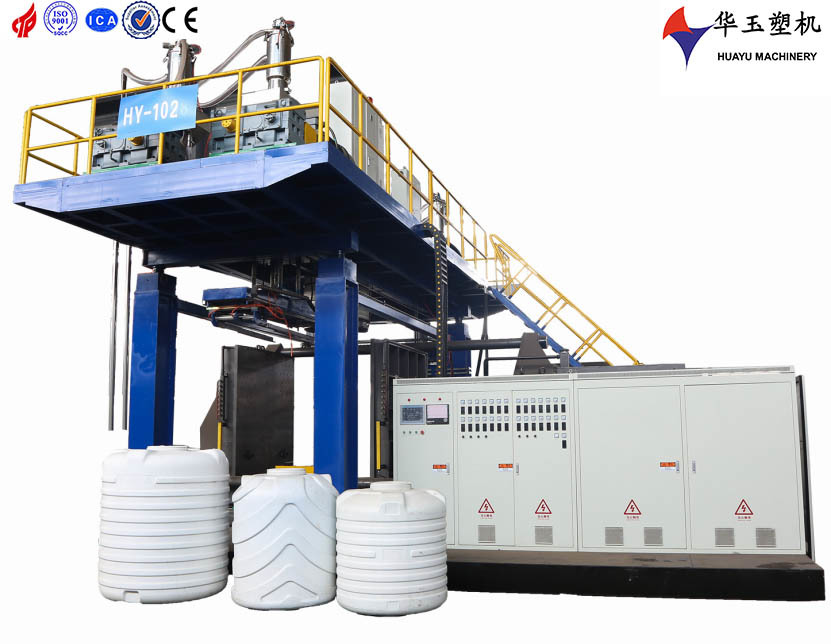

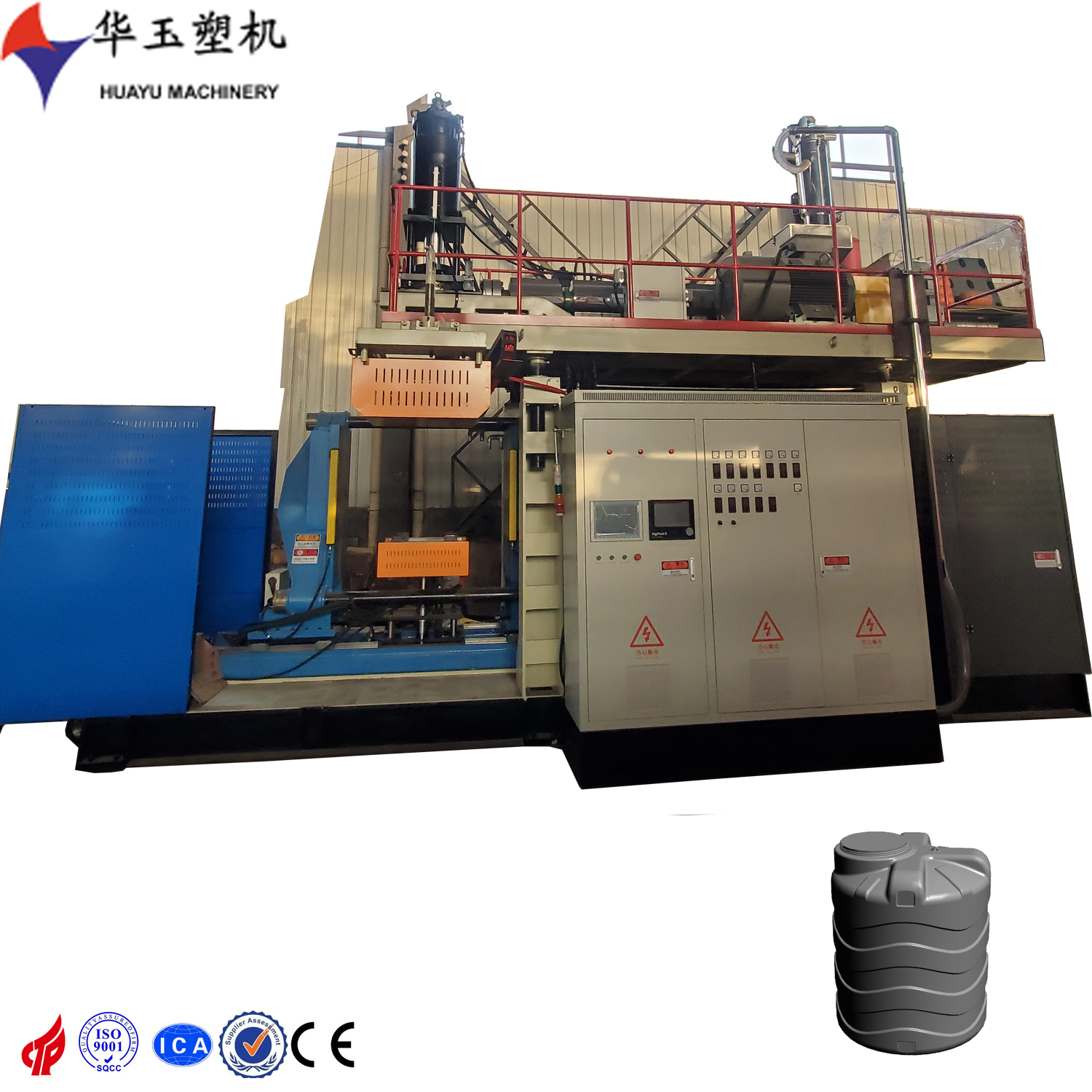

Automatic 5-Layer Extrusion Blow Molding Machine (1000L)
Our 1000L 5-Layer Blow Molding Machine represents the pinnacle of engineering excellence, designed for manufacturers who demand superior quality containers and optimal production performance.
Key Features
- Multi-Layer Construction: 5-layer structure enables strategic material placement for lighter, stronger, and more cost-effective finished products with enhanced performance characteristics.
- High-Capacity Production: Engineered for maximum yield with robust components designed for consistent, high-quality output in demanding 24/7 production environments.
- Advanced Control System: Intuitive operation with cutting-edge control technology providing precise oversight and customization for optimal production orchestration.
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
This machine features a servo motor system for reduced energy consumption, high efficiency, and low noise operation, providing a significant competitive advantage for your manufacturing operations.
