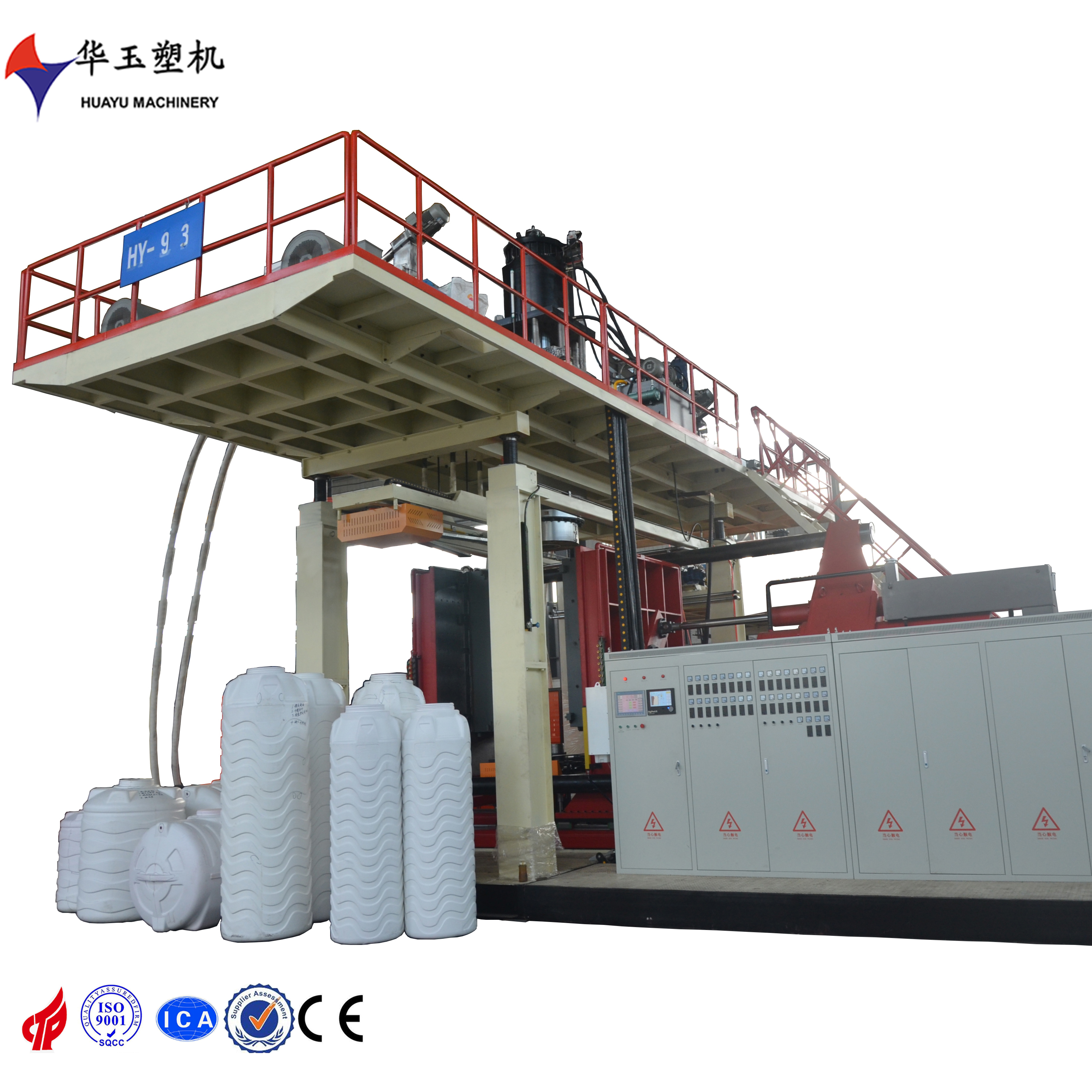

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM 1000L -7層 |
| 最小注文数量 | 1セット |
| 価格 | 280000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4ヶ月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 電圧 | 未決 | 総電力 | 585kW |
|---|---|---|---|
| 平均力 | 385kw | 機械の寸法 (L*W*H) | 8*9*6です5 |
| 生産性 | 16~25個/h | ネジ径 | 90mm*7 |
| ねじL/D比 | 28：1 | 蓄積装置容量 | 50KG |
| マックス 模具のサイズ | 1400*1500mm(幅*高さ) | 最大空気圧 | 0.8MPa |
| 空気消費量 | 1.5m3/min | ||
| ハイライト | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
製品の説明
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
