Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM-10000L 1層 |
| 最小注文数量 | 1セット |
| 価格 | 140000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4ヶ月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
無料のサンプルとクーポンを私に連絡してください.
WhatsApp:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 容量範囲 | 2000-10000L、1層 | 電圧 | 未決 |
|---|---|---|---|
| 総電力 | 690kw | 平均力 | 390kw |
| 機械の寸法 (L*W*H) | 15*9*11 | 生産性 | 2-12個/時間 |
| ネジ径 | 150/150/mm | 蓄積装置容量 | 300kg |
| デイメーター | プロダクトに従って | マックス 模具のサイズ | 2600*3000mm(幅*高さ) |
| 最大空気圧 | 0.8MPa | 空気消費量 | 2m3/min |
| ハイライト | 2000-10000L Capacity Water Tank Blow Molding Machine,Precise Molding Control IBC Tank Blow Molding Machine,Energy Efficient Blow Molding Machine |
||
製品の説明

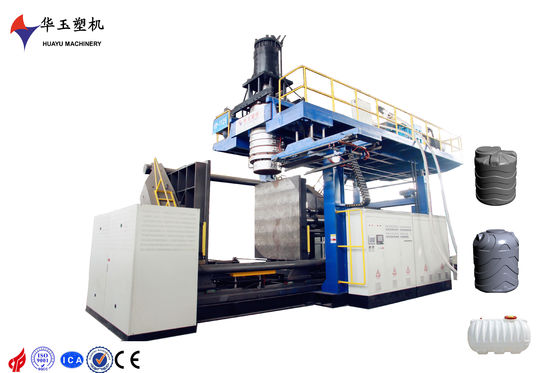

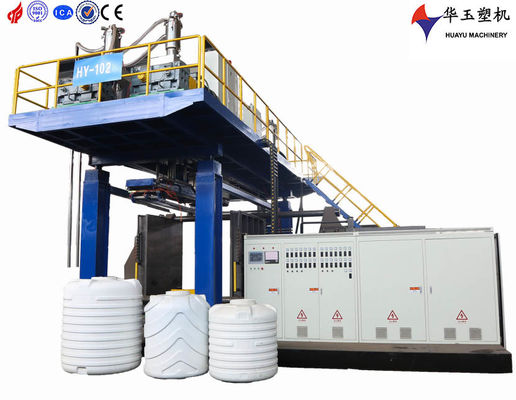

Pro-Grade Water Tank Blow Molding Machine
A specialized industrial machine engineered for producing plastic water buckets and food-grade water containers using advanced blow molding technology. This compact, user-friendly equipment delivers efficient and reliable production performance with precise molding control systems that ensure consistent product quality. The machine produces containers with smooth surface finishes and robust structural integrity that meet strict hygiene and safety standards for food-contact applications.
With flexible adaptability to various bucket designs and food-safe plastic materials, it serves diverse production requirements in household, beverage, and packaging sectors. The optimized operational workflow minimizes disruptions, while ergonomic and energy-efficient features enhance usability and align with sustainable manufacturing principles, making it an indispensable tool for businesses focused on high-quality water container production.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | 160*2 | |
| Main Oil Pump Motor | 57kW*2 | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 33 | |
| Servo Oil Pump Motor | 15kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
