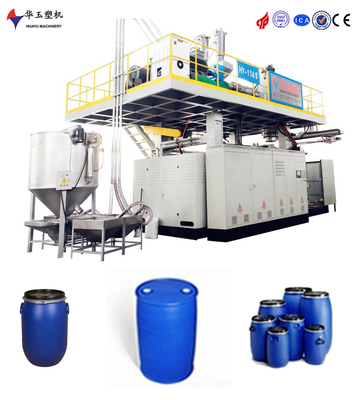

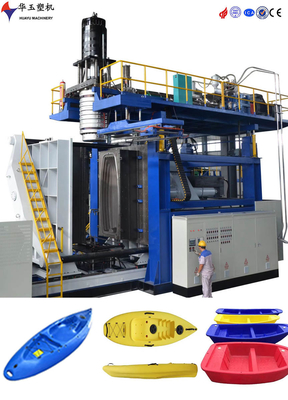

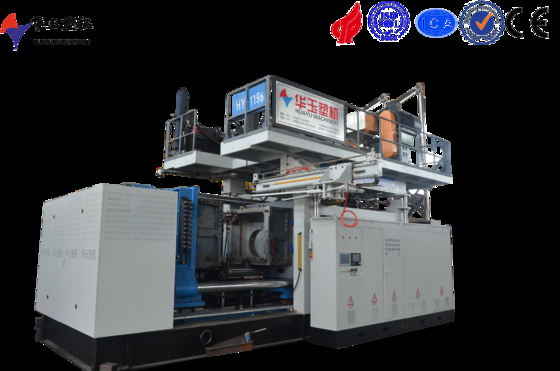

HUAYU 5000L Nine-Layer Large Capacity Water Tank Blow Molding Machine with Superior Oxygen

起源の場所 中国
ブランド名 HUAYU
証明 ISO9001 CE
モデル番号 HYBM5009
最小注文数量 1セット
価格 570,000 USD
パッケージの詳細 コンテナ輸送のために多くの部品に分解される
受渡し時間 4か月
支払条件 T/T、L/C
供給の能力 1セット 120日

無料のサンプルとクーポンを私に連絡してください.

WhatsApp:0086 18588475571

ウェチャット: 0086 18588475571

Skype: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
空気圧 0.8MPa 最大容量 1000L
カビ材料 アルミニウム 使用 水タンク
平均的な消費 280kw アドバンテージ より効率的で安定した
寸法 (長さ×幅×高さ) 6m×2m×3m 可塑化能力 600kg/h
制御システム moog+plc 総重量 32t
寸法 5000*2000*3000mm 水圧 0.3MPa
火力 60kW 金型キャビティ 単一か多数
オートメーション オートメーション
ハイライト

5000L water tank blow molding machine

,

nine-layer water tank molding machine

,

large capacity oxygen blow molding machine

あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
メッセージ
製品の説明

This 5000L nine-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The nine-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, superior oxygen barrier, and advanced moisture barrier. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.

main frame

Up/down stroke

500mm



Up/down motor

4kw



Main parts brand

Extrusion motor

Siemens

Germany

Inverter

Siemens

Germany

Touch screen

Siemens

Germany

PLC

Siemens

Germany

Thickness controller

MOOG

Japan

 Servo valve

MOOG

Germany

il pump/valve

YUKEN

Japan
