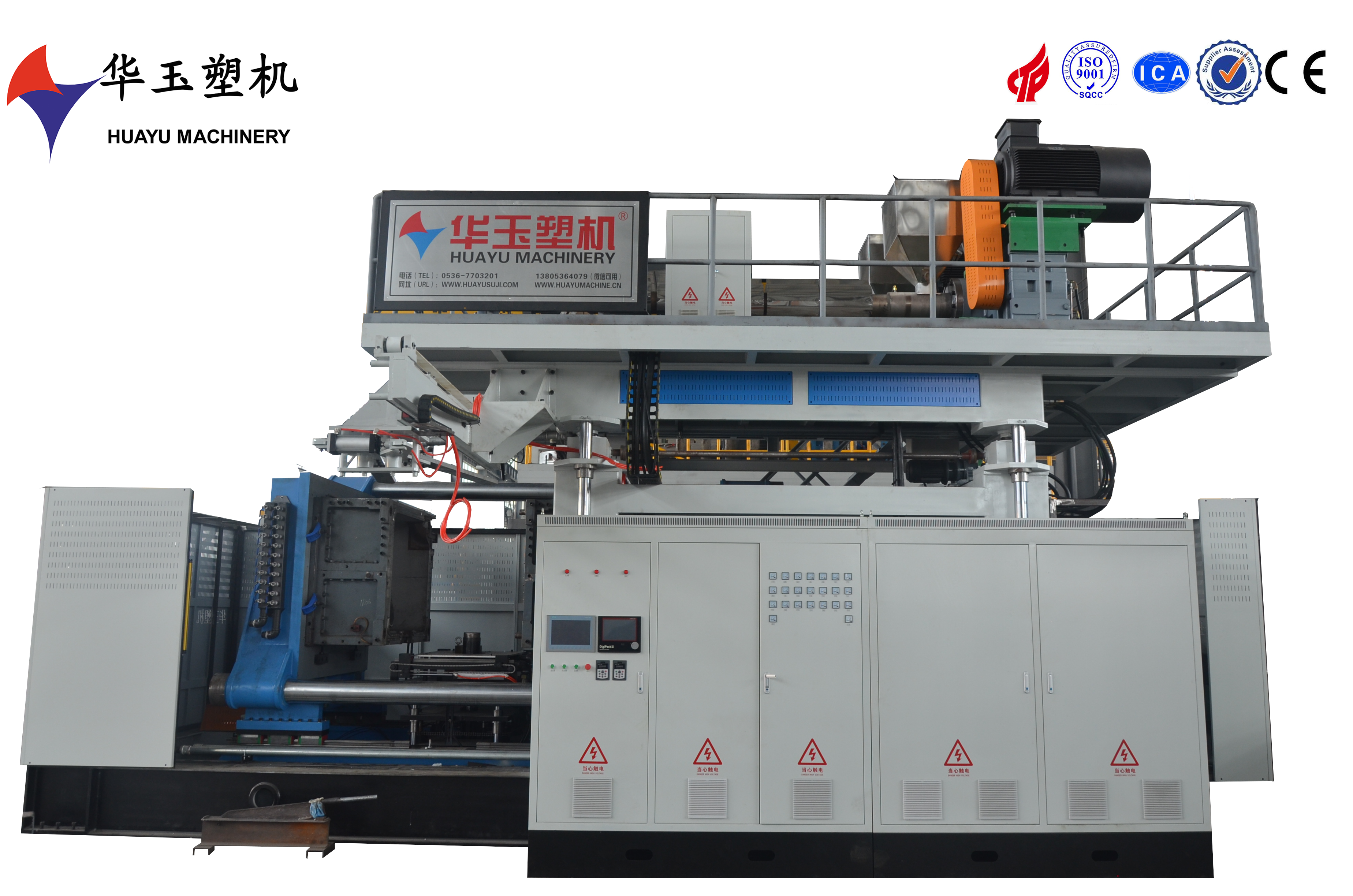

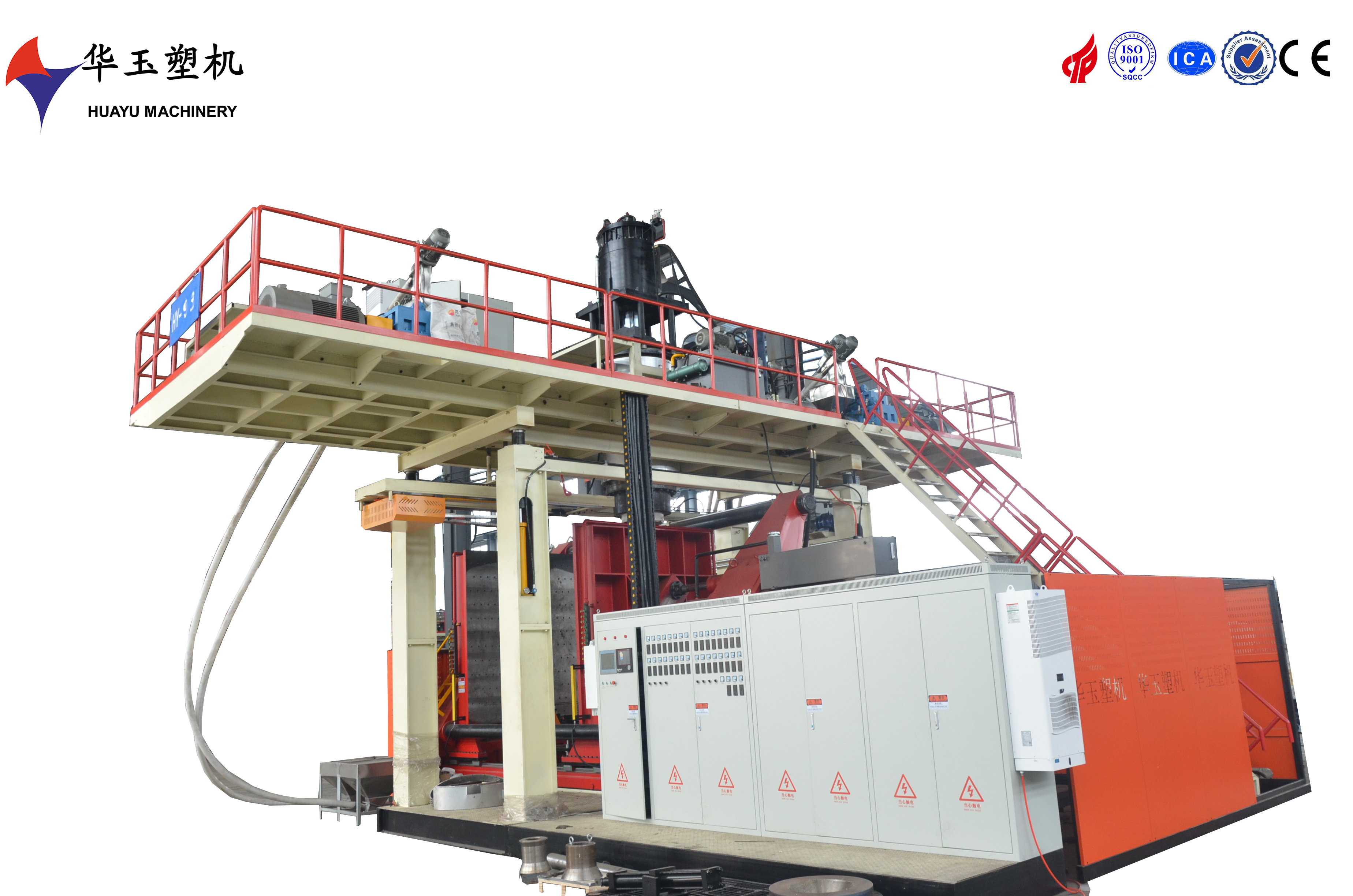

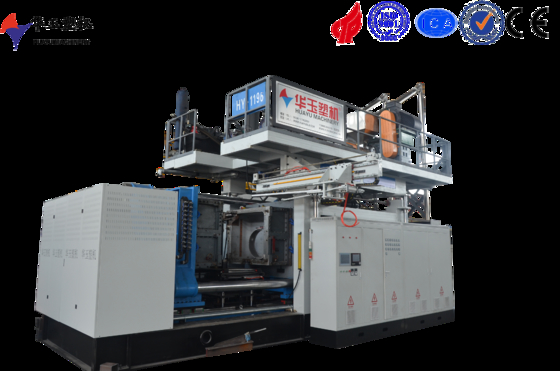

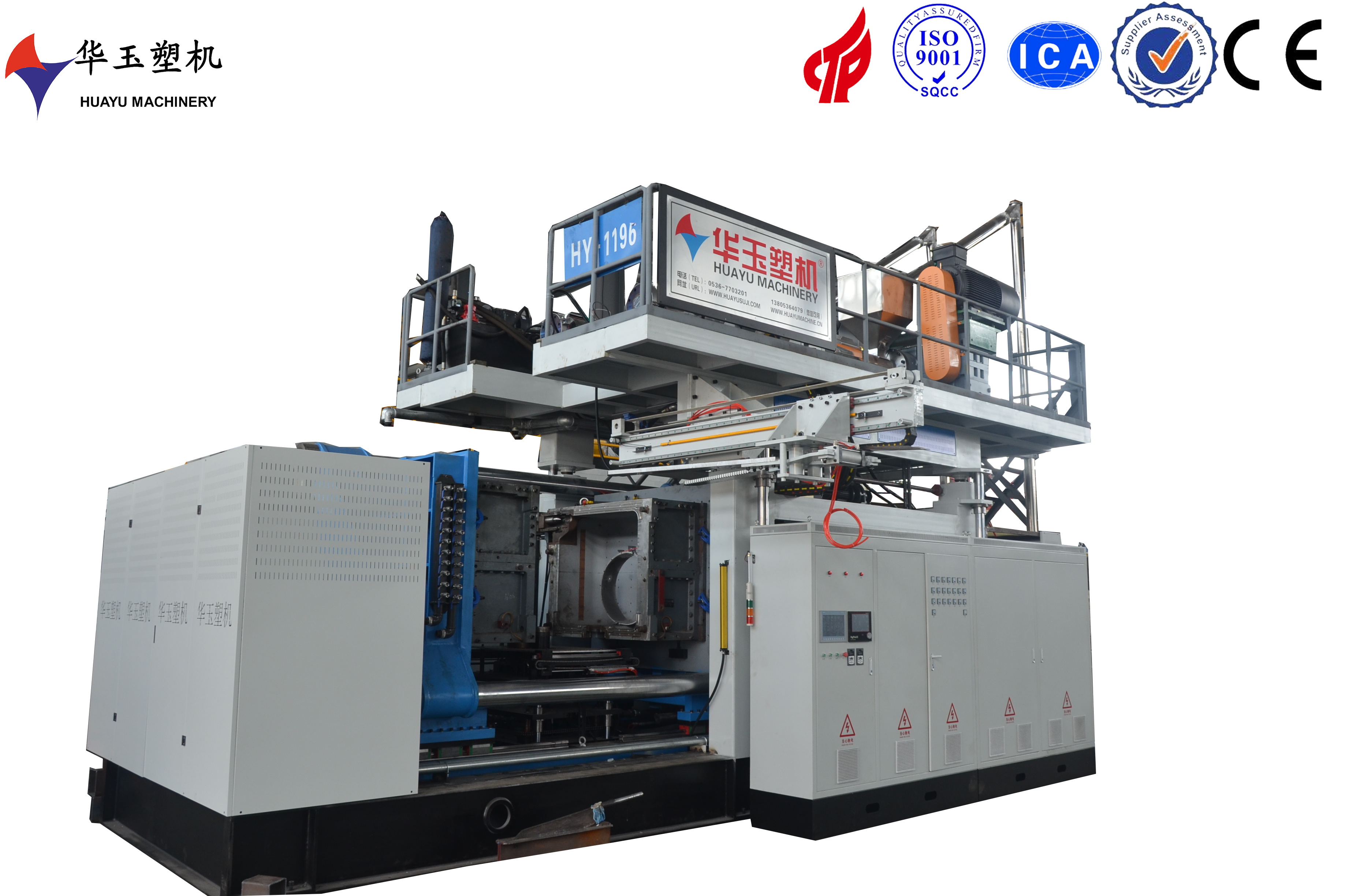

3000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine

起源の場所 中国
ブランド名 HUAYU
証明 ISO9001 CE
モデル番号 HYBM3002
最小注文数量 1セット
価格 290000 USD
パッケージの詳細 コンテナ輸送のために多くの部品に分解される
受渡し時間 4か月
支払条件 T/T、L/C
供給の能力 1セット 120日

無料のサンプルとクーポンを私に連絡してください.

WhatsApp:0086 18588475571

ウェチャット: 0086 18588475571

Skype: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
2024 耐久性 素晴らしい
機械のサイズ 5.0x2.4x3.8M 打撃の伸張 製品によって
材料 LDPE、HDPE、PP リサイクル性 リサイクル可能
オートメーション 完全に自動 最大製品の高さ 1500~2500mm
電圧 380V/50Hz プラテンサイズ 2200*2400*70mm
機械試験報告書 提供された 押出機モーター 37/37/37/37/37kw
エクストルーダーモーター 110/90*2/15*3 押出機モーターパワー 110kw
冷却水圧 0.3-0.6MPA
ハイライト

3000L water tank blow molding machine

,

heavy-duty water tank molding equipment

,

2-layer large water tank machine

あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
メッセージ
製品の説明

This 3000L two-layer heavy-duty blow molding machine is designed for producing multi-layer plastic products with enhanced durability and performance. The dual-layer co-extrusion system allows for advanced material combinations, providing better barrier properties and improved product strength. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Auto Feeder

hopper material

不锈钢stainless steel

Stable performance, easy maintenance

feeding type

弹簧上料spring loaded



feeding motor

2.2/2.2/2.2/2.2kw



 Extrusion System

Screw diameter

110/110/110/110mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

75/75/75/75kw



Reducer

315/315/315/315

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*16



Plasticizing capacity

800kg/h
