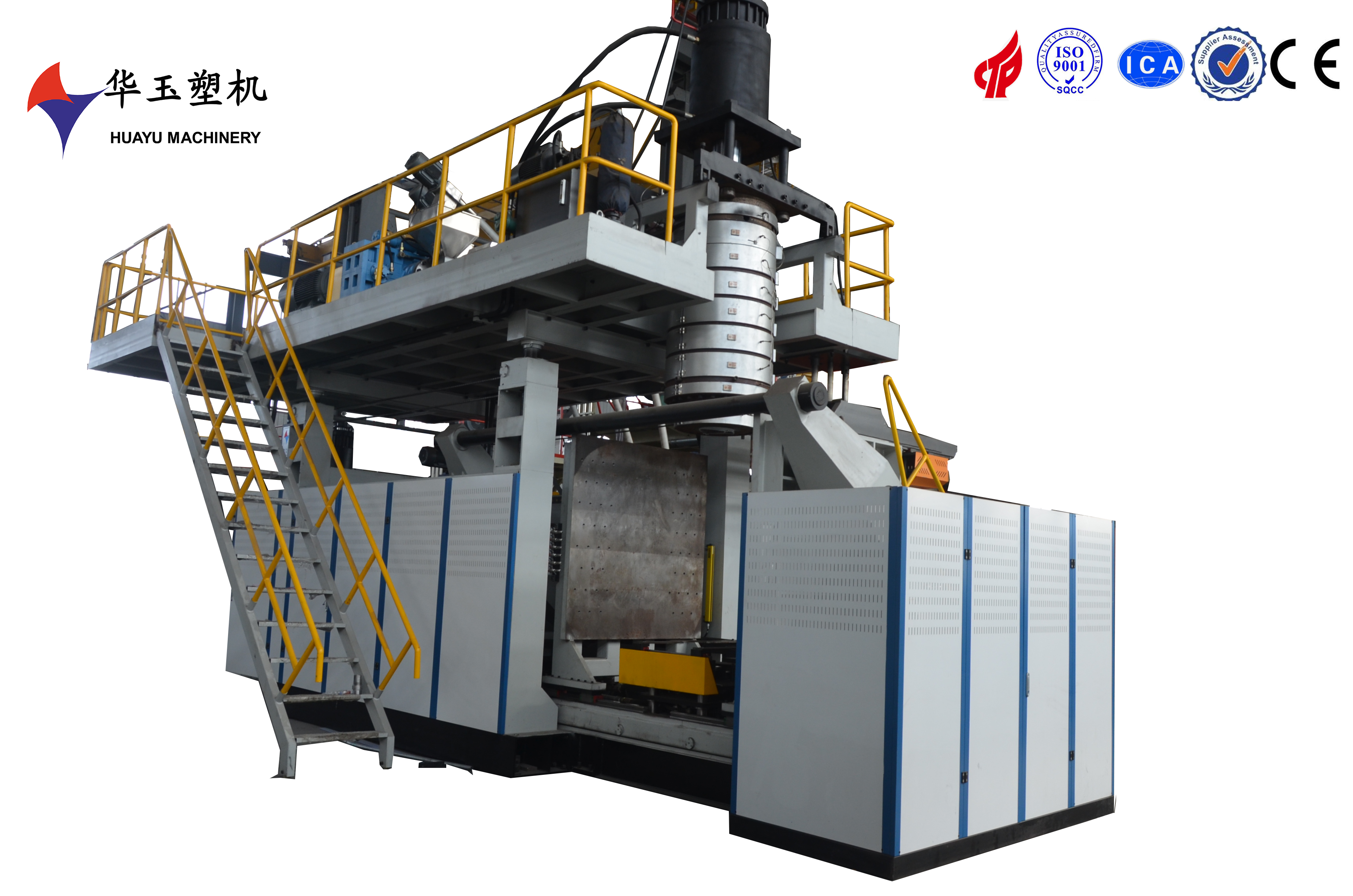

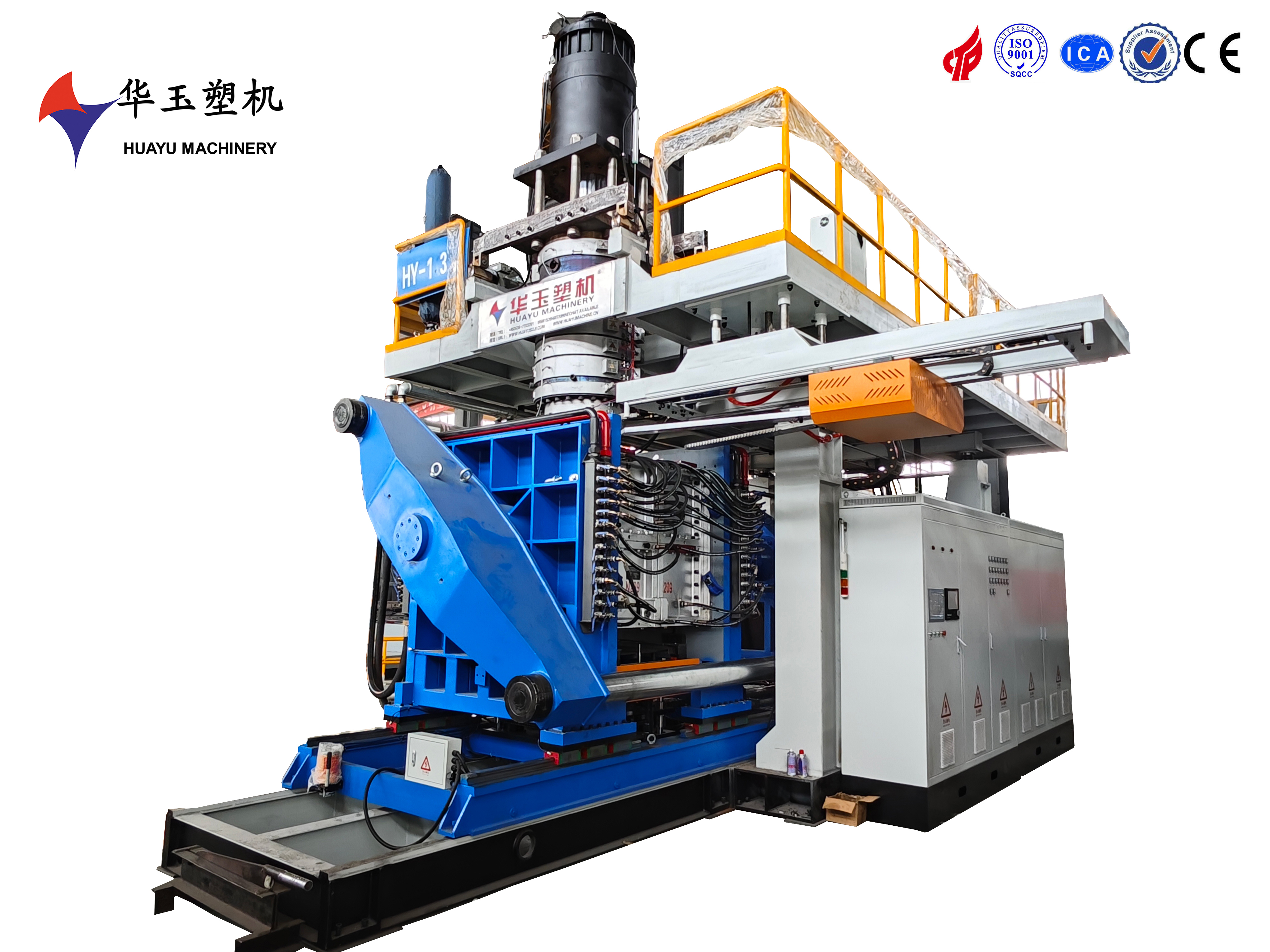

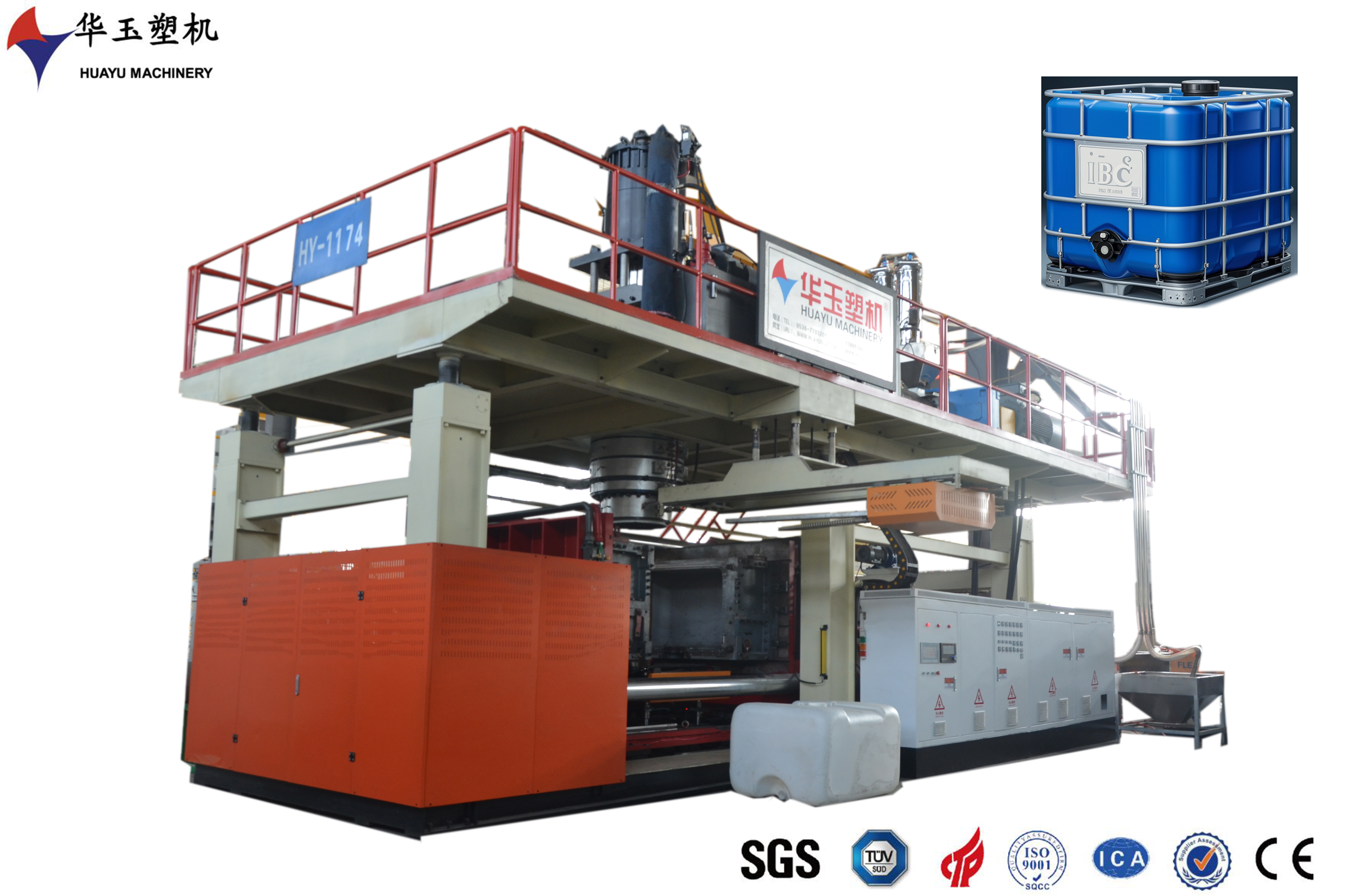

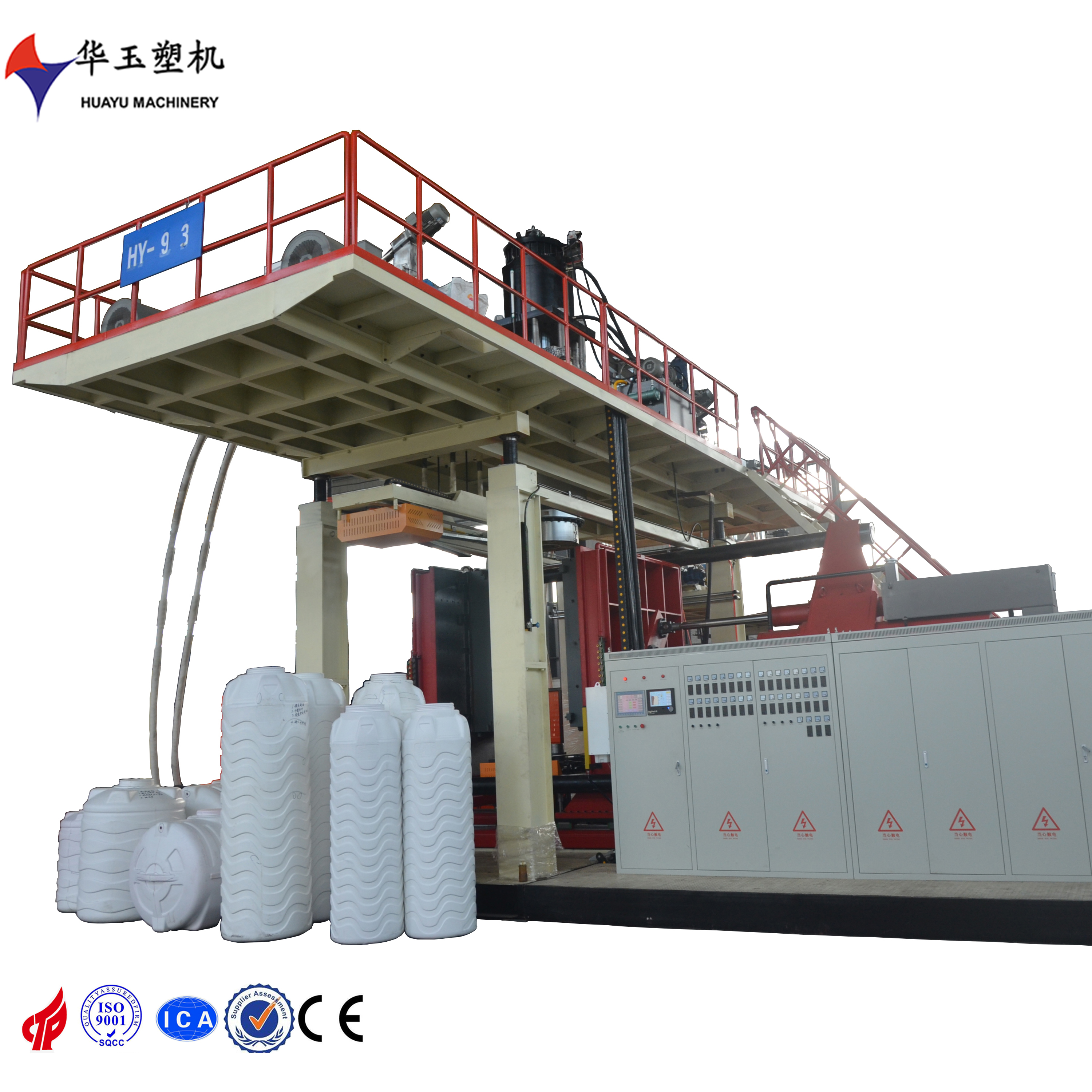

5000L 4-Layer Large High-Precision Water Tank Blow Molding Machine with Efficient
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HUAYU |
| 証明 | ISO9001 CE |
| モデル番号 | HYBM5000-4 |
| 最小注文数量 | 1セット |
| 価格 | 460000 USD |
| パッケージの詳細 | コンテナ輸送のために多くの部品に分解される |
| 受渡し時間 | 4か月 |
| 支払条件 | T/T、L/C |
| 供給の能力 | 1セット 120日 |
商品の詳細
| 冷却水の消費 | 60m3/h | クランプ力 | 2500kn |
|---|---|---|---|
| 自動 | はい | 給餌モーター | 2.2kw*8 |
| 冷却システム | 水冷 | 電圧 | 顧客 |
| 製品材料 | HDPE | 電源 | 380V/50Hz |
| 年 | 2024 | レイヤー | 4層 |
| パリソン | MOOG 200ポイント | 販売後 | 海外サービス |
| 総重量 | 50T | 生産可能 | 水タンク,他のプラスチック製品 |
| 空気供給 | 0.8*6 ((Mpa*立方メートル/分) | ||
| ハイライト | 5000L water tank blow molding machine,4-layer high-precision blow molding machine,large water tank molding machine with warranty |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
This high-precision blow molding machine with a 5000L capacity and 4-layer co-extrusion is designed for producing high-quality, multi-layered plastic products. The integrated water tank system ensures accurate temperature control and consistent cooling, resulting in superior product quality. The machine's advanced control system offers precise control over the molding process, ensuring consistent product dimensions and quality. Its durable construction and reliable performance make it suitable for industries requiring high-precision plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
ling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
60kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump35 |
|
|
Servo oil pump motor |
11kw |
|
