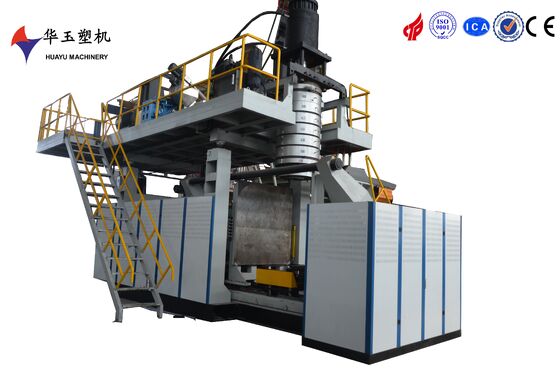

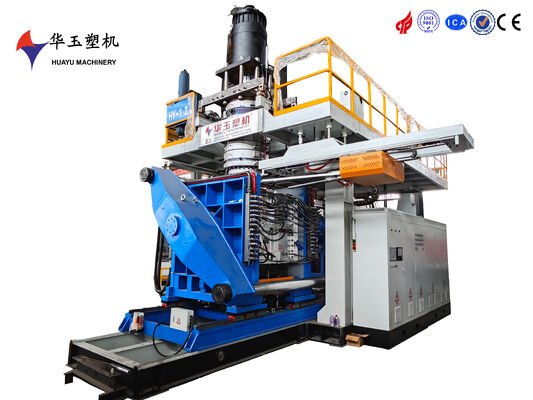

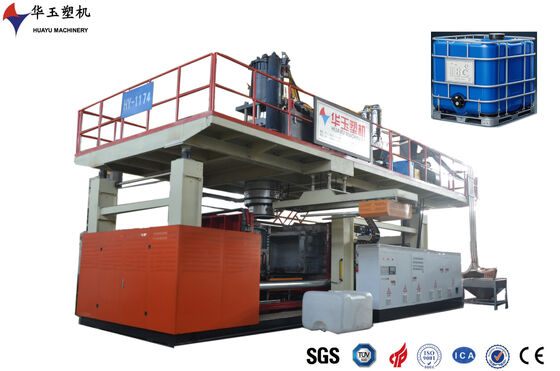

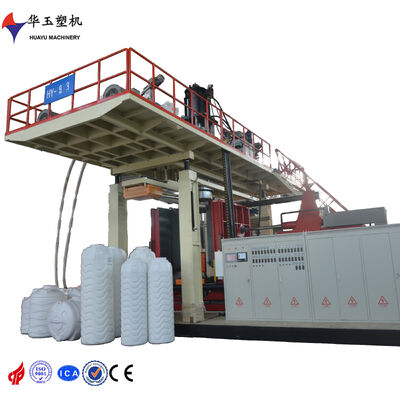

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

起源の場所 中国
ブランド名 HUAYU
証明 ISO9001 CE
モデル番号 HYBM3000-5
最小注文数量 1セット
価格 380000 USD
パッケージの詳細 コンテナ輸送のために多くの部品に分解される
受渡し時間 4か月
支払条件 T/T、L/C
供給の能力 1セット 120日

無料のサンプルとクーポンを私に連絡してください.

WhatsApp:0086 18588475571

ウェチャット: 0086 18588475571

Skype: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
マシンタイプ 高速プラスチックボトル製造機 タッチスクリーン シーメンス
サーボ弁 ムーグ 可塑化能力 800kg/h
ギアボックス グマオ クリーニング方法 容易なクリーニング
ホッパー素材 ステンレス鋼 空気スイッチ シュナイダー
容量範囲 500--3000L、5層 金型冷却システム 空冷
最大空気圧 0.8mpa 容量 1000リットル
給餌モーター 2.2/2.2/2.2kw 保証 1年
金型タイプ 単一ステーション
ハイライト

3000L water tank blow molding machine

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
メッセージ
製品の説明

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
